Laminated Copper Busbar for Electric Vehicle Battery
USD 5,00 – 1000,00
/ piece
El precio varía según cantidad y especificaciones
| Cant. mín. | 50 piece |
| Stock | 0 piece |
| Categoría | Electronics |
Garantía comercial
Entrega a tiempo
Muestra disponible
Proveedor certificado
15
Años
98%
Tasa de respuesta
24h
Tiempo de respuesta
Descripción del producto

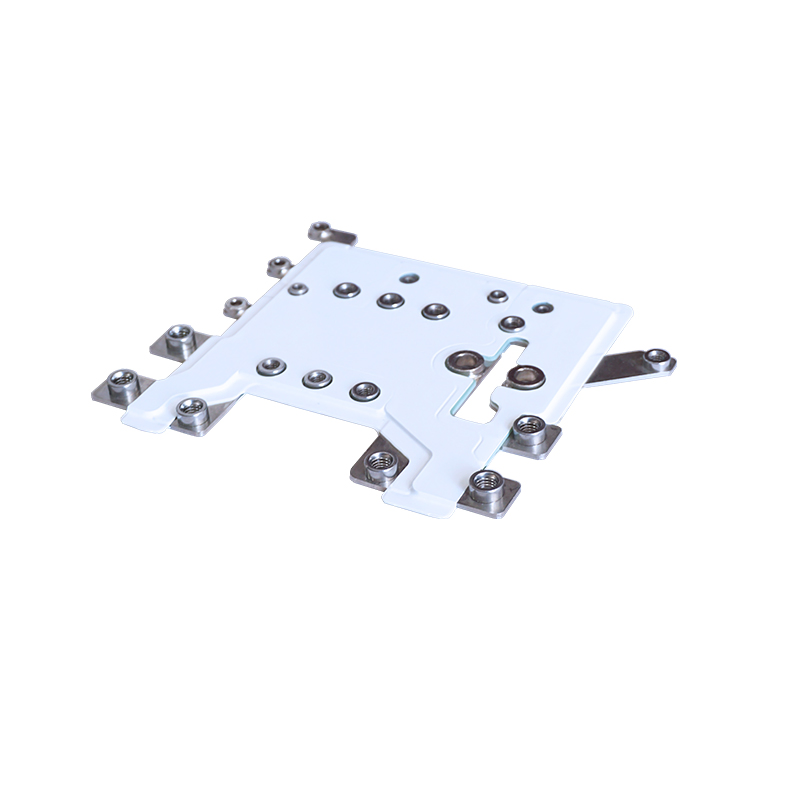

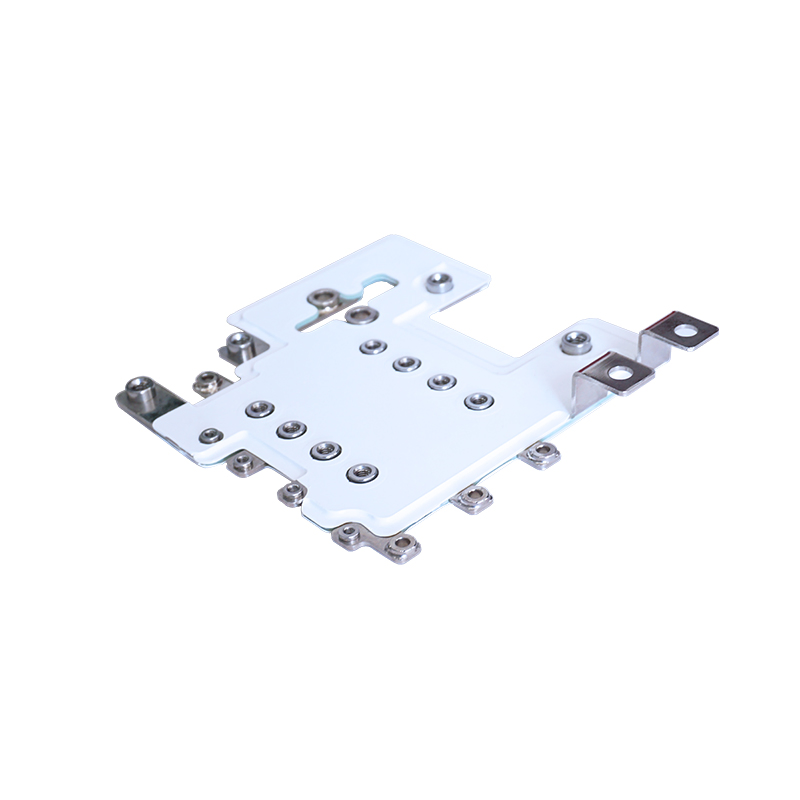

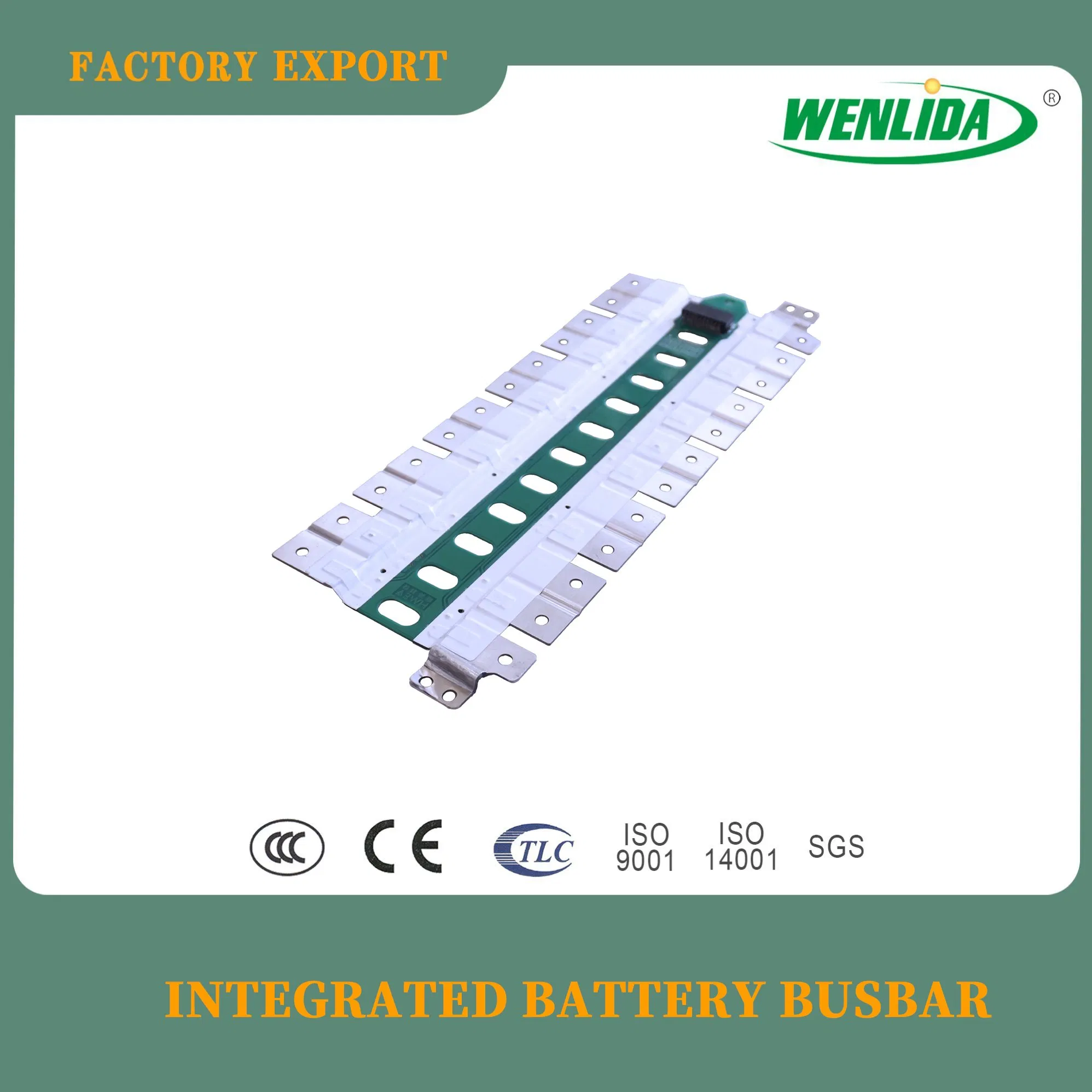

This laminated copper busbar is designed for integrated battery systems in electric cars, offering low inductance and high current capacity. It features customizable layers (1-6), optional surface treatments, and certifications including RoHS, CE, and ISO9001. Suitable for AC and DC applications with rated current up to 4000A and insulation voltage from 300V to 20kV.
Especificaciones técnicas
| Model NO. | busbar |
| Surface Treatment | Optional |
| Certification | RoHS, CE, ISO9001 |
| Layers | 1~6 |
| Current Type | AC & DC |
| Insulation Withstanding Voltage | 300~20kv |
| Rated Current | 0~4000A |
| Size | Small, Medium, Large |
| Brand | Wenlida |
| Temperature Rise | ≤30K |
| Working Temperature | -40~+105℃ |
| Production Quantity | 20000 Pieces/Month |
| Transport Package | Wooden Case |
| Specification | According to drawings |
| Trademark | WENLIDA |
| Origin | China |
| HS Code | 8535900090 |
